Light Duty Live Center VPC Series

worachit — Thu, 26 Sep 2019 04:15:08 +0000

Light Duty Live Center VPC Series

Code : VPC-MT1-MT5

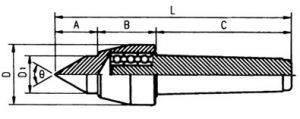

Dimension (mm)

Specification

Order No.	A	B	C	D	D1	L	Accuracy	Gross Weight
VPC-MT1	21	31	56	32	16	108	0.005	0.3kgs
VPC-MT2	26	37	69	40	22	132	0.005	0.5kgs
VPC-MT3	32	46	86	45	26	164	0.005	0.9kgs
VPC-MT4	34	46	108	48	30	188	0.005	1.3kgs
VPC-MT5	50	62	136	68	45	248	0.005	3.3kgs

Download PDF

The post Light Duty Live Center VPC Series first appeared on fntoolsshop.

High Speed NC Live Center VLC Series

worachit — Thu, 04 Jul 2019 06:55:25 +0000

ยันศูนย์เป็นความเร็วสูง รุ่น VLC

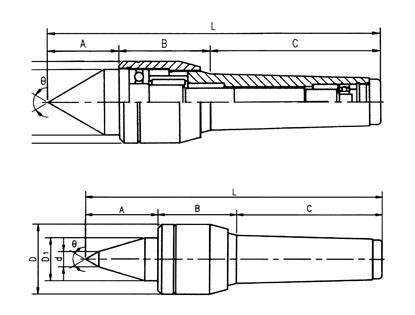

High Speed NC Live Center VLC Series

Code : VLC-MT3A-MT5B

Features คุณสมบัติ

* Center shaft is made of SKS3 material under vacuum heating treatment to provide higher rigidity (HRC60° ± 2°) and satisfied wear-resistance.
* Center is constituted by dual ball bearing. Thrust bearing & needle roller bearing assembly.
* Applicable to high-speed leathe & NC leathe with heavy load water-proof..

※ประเภท B ใช้ได้กับงานโลหะบนชิ้นงานขนาดเล็ก

Specification

ORDER NO.	TYPE	A	B	C	D	D1	L	Accuracy	Gross Weight
VLC-MT3A	MT3A	39	55	86	53	30	180	0.005	1.3Kgs
VLC-MT4A	MT4A	42	62	108	63	32	212	0.005	2.2Kgs
VLC-MT5A	MT5A	57	71	136	83	40	264	0.005	4.5Kgs
VLC-MT6A	MT6A	80	115	139	128	70	384	0.008	15.6Kgs
VLC-MT3B	MT3B	45	55	86	53	30	186	0.005	1.4Kgs
VLC-MT4B	MT4B	52	62	108	63	32	222	0.005	2.2Kgs
VLC-MT5B	MT5B	67	71	136	83	40	274	0.005	4.5Kgs

Download PDF

The post High Speed NC Live Center VLC Series first appeared on fntoolsshop.

Live Lathe Center VLC Series

worachit — Thu, 04 Jul 2019 06:36:28 +0000

Live Lathe Center VLC Series

Code : VLC-212-214

Features คุณสมบัติ

* Center shaft & main body are made of alloy steel under heating treatment to provide higher rigidity (HRC60° ± 2°) and satisfied wear-resistance.
* Center is constituted by ball bearing assembly.
* Applicable to middle-speed & high-speed leathe with light load.

Specification

ORDER NO.	TYPE	A	B	C	D	D1	L	Accuracy	Gross Weight
VLC-212	MT2A	28	35	69	32	25	132	0.005	0.3 kgs
VLC-213	MT3A	36	44	86	41	35	166	0.005	0.9 kgs
VLC-214	MT4A	41	51	108	47	40	200	0.005	1.5 kgs
VLC-215	MT5A	54	72	136	65	52	262	0.005	3.8 kgs
VLC-213B	MT3B	46	44	86	41	25	176	0.005	0.9 kgs
VLC-214B	MT4B	55	51	108	47	32	214	0.005	1.5 kgs

Download PDF
