ปากกาแท่นเจาะเครื่องมิลลิ่ง,Angle fixed 8″
• สินค้าคุณภาพจากใต้หวัน
• เป็นปากกาจับชิ้นงานที่มีความเที่ยงตรงสูงกว่าปากการุ่นทั่วไป
Product Description
Angle fixed milling vise 8″
ปากกาแท่นเจาะเครื่องมิลลิ่ง,Angle fixed 8″
Code : VA-8
* Use highest quality ductile Iron 80000 PSI for minimum bending.
* The enclosed lead screw and sliding surface are harden and ground.
* Highest clamping power. It’s very accurate and durable.
* This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward.
Specifications ข้อมูลจำเพาะ
* Jaw open : 197 mm.
* Gross Weight : 80 kg

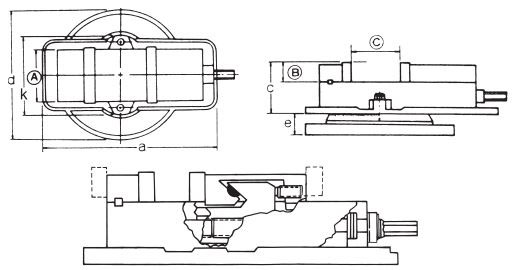

Dimension
| A | B | C Open | D | E | E1 | F | G | H | I | J | K | L | M | CFT (cm) | Max Clamp Forc (kgs) | Weight kg. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 210 | 60 | 197 | 129 | 553 | 583 | 17 | 355 | 145 | 190 | 395 | 366 | 19 | 105 | 63x41x24 | 3000 | 80 |
| * Use highest quality ductile Iron 80000 PSI for minimum bending. |
| * The enclosed lead screw and sliding surface are harden and ground. |
| * Highest clamping power. It’s very accurate and durable. |
| * This Vise is so designed that the horizontal force generated by tightening the handle pushes the semi-sphere within the movable jaw and thus thrusts the movable jaw downward. |
| * Therefore, the workplace does not move up, even if it is held at the top of the jaw plates. |
| * Four setting positions of the jaw plates are available, widening the jaw plates opening. |
| * The new VD675,VA-8L have two major improvements: a wide opening jaw and a new stationary jaw that features an intergral key,larger fasteners which reduce deflection by 50% |
| น้ำหนัก | 80 kg |
|---|
