CEH Type Circulating Electric Lubricator,Controlled by PLC,Tank 4L

Name: CEH Type Circulating Electric Lubricator,Controlled by PLC,Tank 4L
SKU: CEH-05
Availability: InStock

• ปั้มจ่ายน้ำมันชนิดออกแบบมาเพื่อหมุนเวียนน้ำมันเพื่อนำมาใช้ใหม่ ดังนั้นจึงสามารถประหยัดการใช้น้ำมันในระหว่างการหล่อลื่น
• มีสวิตช์ลูกลอยที่สามารถตรวจจับปริมาณน้ำมันได้ มันจะมีสัญญาณอัตโนมัติเมื่อระดับน้ำมันต่ำกว่าระดับต่ำสุด

รหัสสินค้า: CEH-05 หมวดหมู่: Automatic pump circulating type

Compare

Product Description

CEH Type Circulating Electric Lubricator,Controlled by PLC,Tank 4L

Code : CEH-05

• CEH Type Circulating Electric Lubricator

Features คุณสมบัติ

• CEH is a circulating type lubricator which means the oil flows out from the discharge outlet into the oil pipes to the lubricating points then continues flowing back into the oil tank through the cyclic inlet. The cyclic inlet has a magnetic filter which can prevent the impurities from getting into the oil tank in order to assure the oil clean.
• CEH type is without the timer that could be also controlled by the Programmable Logic Controller (PLC).
• After installing the CEH type lubricator and connecting the oil pipes, let the lubricator continue running til the oil fulfils the oil pipes and the oil flows out to exhaust the air, then the lubricator is ready to use.
• It has a high quality alloy steel pump that not only can provide steady output pressure and low noise, but also can assure the oil reaches each lubricating point. It is suitable for applying in the large machineries’ demands.
• It has a pressure-regulating valve and pressure gauge that an operator can adjust the pressure and check the pressure easily.
• It has a float switch that can detect the oil level. It sends continuous signals automatically when the oil level is lower than the minimum. The standard specification is NC contact and NO contact is available on request.

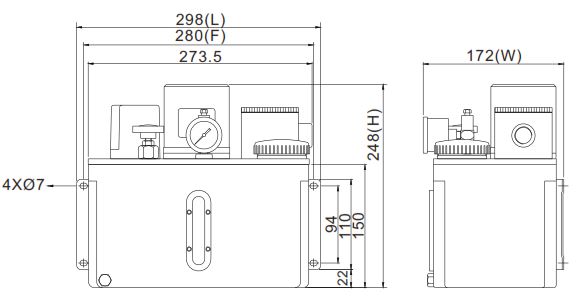

Dimension

Tank Code	Tank Material	Capacity Liters	Fixed Hole Distance (mm)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
05	Aluminum	4L	280	298	172	248	7.25
08	Iron	8L	338	355	190	275	10.3
12	Iron	12L	475	495	220	315	12.6

Specification รายละเอียด

* Act Time : Controlled by PLC
* Interval Time : Controlled by PLC
* Tank วัสดุถัง : Aluminum
* Capacity Liters ความจุ : 4L
* Motor มอเตอร์ : 25W
* Voltage : 110V,0.7 Ampere /220V., 0.2 Ampere
* Max Volume ปริมาณสูงสุด : 250 cc / min
* Max Pressure แรงดันสูงสุด : 15 kgf / cm2
* Discharge ท่อ : Ø4 With Pressure gauge
* Cyclic Inletb : 1/2″
* Oil Viscosity ความหนืดของน้ำมัน : 32-68cST /40^oC
* Fixed Hole Distanee (mm) : 280

Download PDF

Features คุณสมบัติ

• CEH type is without the timer that could be also controlled by the Programmable Logic Controller (PLC).

• After installing the CEH type lubricator and connecting the oil pipes, let the lubricator continue running til the oil fulfils the oil pipes and the oil flows out to exhaust the air, then the lubricator is ready to use.

• It has a high quality alloy steel pump that not only can provide steady output pressure and low noise, but also can assure the oil reaches each lubricating point. It is suitable for applying in the large machineries' demands.

• It has a pressure-regulating valve and pressure gauge that an operator can adjust the pressure and check the pressure easily.

• It has a float switch that can detect the oil level. It sends continuous signals automatically when the oil level is lower than the minimum. The standard specification is NC contact and NO contact is available on request.

Application of Machines Equipment:

• The circulating type electric lubricator that is designed to circulate the oil for reuse; therefore, it can save the usage of oil during the lubrication.

• The circulating type lubricator can provide efficient cooling, lubrication and filtration that can reduce wear of the lubricating parts. It is suitable for the machines that require large discharge volume.
