CEN22 Horizontal Oil-Mist Electric Lubricators,Controlled by Timer,Tank 3L
• มีวาล์วปรับแรงดันซึ่งสามารถปรับแรงดันได้
• มีเกจวัดแรงดันที่สามารถตรวจจับแรงดันได้ง่าย
Product Description
CEN22 Horizontal Oil-Mist Electric Lubricators,Controlled by Timer,Tank 3L
Code : CEN22-03
• CEN22 Horizontal Oil-Mist Electric Lubricators
Features คุณสมบัติ
* The timer controls the operation and interval time. The electronic box has operation and interval indicators.
* The electronic box can automatically save the original operation and interval time while the power is suddenly off. After turning on the power, it would return to the original setting time and start the cycle again.
* It has a feed-oil button ( F button), press the button and the oil will feed immediately.
* The discharge volume is stable and can be adjusted by the pressure-regulating valve. Turning the valve clockwise, the oil volume will increase, and turning anticlockwise, the oil volume will reduce.
* When the power of the lubricator is off, the air pressure and output power will be turned off at the same time for safety.
* It has a pressure-regulating valve, which can adjust the pressure and easy to check from the pressure gauge.
* It has a float switch that can detect the oil volume. It will have an automatic signal when the oil level is lower than the minimum.

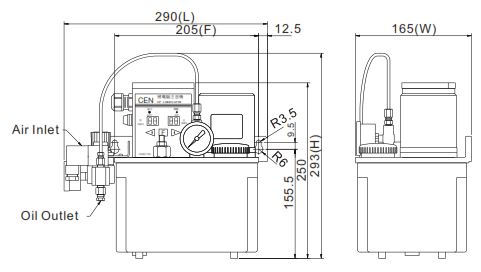

Dimension
Specification รายละเอียด
* Act Time : 1-99 Sec
* Interval Time : 1-99 sec / 1-99 min
* Tank วัสดุถัง : Resin
* Capacity Liters ความจุ : 3L
* Motor มอเตอร์ : 25W
* Voltage : 110V,2.5 Ampere /220V., 1 Ampere
* Max Volume ปริมาณสูงสุด : 200 cc / min
* Max Pressure แรงดันสูงสุด : 15 kgf / cm2
* Discharge ท่อ : Ø4 With Pressure gauge
* Time Adjuster : Inside The Wiring Box
* Oil Viscosity ความหนืดของน้ำมัน : 32-68cST /40oC
* Fixed Hole Distanee (mm) : 205
* ความยาว (มม) : 290
* กว้าง (มม) : 165
* สูง (มม) : 293
* น้ำหนัก : 5.70kg

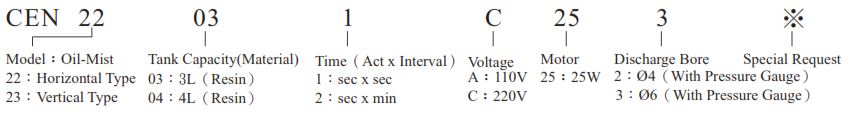

• Order Code
Features คุณสมบัติ
| * The timer controls the operation and interval time. The electronic box has operation and interval indicators. |
| * The electronic box can automatically save the original operation and interval time while the power is suddenly off. After turning on the power, it would return to the original setting time and start the cycle again. |
| * It has a feed-oil button ( F button), press the button and the oil will feed immediately. |
| * The discharge volume is stable and can be adjusted by the pressure-regulating valve. Turning the valve clockwise, the oil volume will increase, and turning anticlockwise, the oil volume will reduce. |
| * When the power of the lubricator is off, the air pressure and output power will be turned off at the same time for safety. |
| * It has a pressure-regulating valve, which can adjust the pressure and easy to check from the pressure gauge. * It has a float switch that can detect the oil volume. It will have an automatic signal when the oil level is lower than the minimum. |
Application of Machines Equipment:
| * The oil-mist type lubricator has cooling, lubricative and filtering effect that can reduce wear of the lubricating parts. |
| * It is suitable for cutting machines and bearings lubrication. |
