CP Electric winch new model,Capacity 300 kg

* Quiet running
* Emergency stop function switch is available upon request
* Low voltage control ass’y is available upon request

รหัสสินค้า: CP-300B หมวดหมู่:

18,414.00฿

Compare

Bulk Discount

Product Description

CP Electric winch new model,Capacity 300 kg

Model : CP-300B

Specification รายละเอียด

* Load Rated : 300 kg.
* Speed (m/min) : 10-15 m/min
* Lifting Height : 29 m.
* Motor (HP.) : 1.1HP/4P
* Volt(v.) : 220V.1Phase
* Wire rope (mmXm) : Ø6 mm x 30 m.

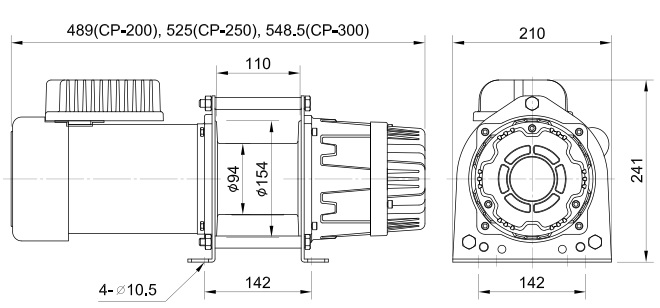

* Dimension(W*L*H) :576 x 210 x 241 mm
* Weight : 38 kg

Accessories อุปกรณ์มาตรฐาน
* Wire rope, 6mm x 30m
* Weight hook CHW-0031
* Remote control, CPB-213 [a) Switch cord 1.25mm x 5C x 3m; b) Pendant Switch CPB-213]
* Power lead 1.5mm x 3C x 3m and industry plug
Optionnal Accessories อุปกรณ์เสริม
* Remote control, PB-331 [a) Switch cord 1.25mm x 5C x 3m; b) Pendant Switch PB-331 with an emergency stop button]
* Low voltage control ass’y LV-320 [a) Switch cord 1.25mm
x 3C x 3m; b) Pendant switch PB-306 with an emergency
stop button; c) Low voltage control, LV-320]

Download PDF

* Positive retention of wire rope on to drum
* Heavy duty high efficiency ball bearing on all running surfaces
* Planetary gears for maximum mechanical efficiency
* Enclosed drum flanges to prevent rope becoming trapped between drum and support steel plates
* Quiet running
* Emergency stop function switch is available upon request
* Low voltage control ass'y is available upon request
น้ำหนัก 38.00 kg
