ER Collet Chuck With BT-Extension For CNC Machine Center
• Accuracy runout 0.005 mm Taper Shank AT-3 R.P.M.7000
• Made in taiwan
Product Description
ด้ามจับคอลเลต ER ด้ามยาว BT / Collet Holder With BT-Extension,BT-Taper-Shank, For CNC Machine Center
Code : V7742
• ค่าความละเอียด 0.005 mm Taper Shank AT-3 R.P.M.7000

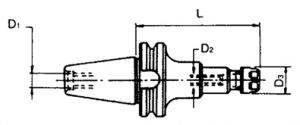

Dimension (mm)
ORDER NO. | TAPER | COLLET TYPE | D3 | L | D1 | WEIGHT KGS |
---|---|---|---|---|---|---|
V-770 | BT30 | ER16 | 28 | 60 | M12 | 0.6 |
V-772 | BT40 | ER16 | 28 | 70 | M16 | 1.2 |
V-773 | 28 | 100 | M16 | 1.4 | ||
V-774A | 28 | 150 | M16 | 1.7 | ||
V-774 | BT40 | ER20 | 34 | 70 | M16 | 1.3 |
V-775 | 34 | 100 | M16 | 1.5 | ||
V-775A | 34 | 135 | M16 | 1.6 | ||
V-775B | 34 | 150 | M16 | 1.9 | ||
V-775C | BT40 | ER25 | 42 | 150 | M16 | 2.1 |
V-733 | BT40 | ER25 | 50 | 150 | M16 | 2 |
V-776 | BT50 | ER16 | 28 | 100 | M24 | 2.3 |
V-777 | 28 | 150 | M24 | 4.3 | ||
V-743A | 28 | 200 | M24 | 7.5 | ||
V-778 | BT50 | ER20 | 34 | 100 | M24 | 4.1 |
V-779 | 34 | 150 | M24 | 4.8 | ||
V-735 | 34 | 200 | M24 | 5 | ||
V-736 | BT50 | ER25 | 42 | 100 | M24 | 4.3 |
V-737A | 42 | 150 | M24 | 4.8 | ||
V-744A | 42 | 200 | M24 | 8 | ||
V-738A | BT50 | ER32 | 50 | 150 | M24 | 5.5 |
V-739A | 50 | 200 | M24 | 6.5 | ||
V-741A | BT50 | ER40 | 63 | 200 | M24 | 7.5 |
V-742A | BT50 | ER50 | 78 | 150 | M24 | 6.7 |
• Collet Holder With BT-Extension,BT-Taper-Shank, For CNC Machine Center |
• Accuracy runout 0.005 mm Taper Shank AT-3 R.P.M.7000 |
