Quick Change Tapping Chucks BT50 Shank
• No tension or compensation stroke for use in synchronous tapping(rigid tapping) cycle.
• Made in taiwan
รหัสสินค้า: BT50-SF12,BT50-SF20,BT50-SF33
หมวดหมู่: Tapping Chucks
Product Description
Quick Change Tapping Chucks BT50
• MAS-BT SHANK / DIN69871A SHANK
• Solid Type
• BT50-SF- Rigid Tapping Type, No lenght compensation
Code : BT50-SF12,BT50-SF20,BT50-SF33

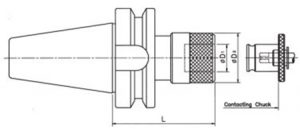

Dimension (mm)
Order No | Thread Size | L | D1 Chuck Connecting øDIA | D2 | Collets | Weight (kg) | Code No |
---|---|---|---|---|---|---|---|
BT50-SF12 | M2-M14 | 78 | ø19 | 34 | TC-312 TC-312B | 3.6 | 3404-110 |
BT50-SF20 | M5-M24 | 95 | ø31 | 50 | TC-820 TC-820B | 4 | 3404-112 |
BT50-SF33 | M14-M36 | 142 | ø48 | 74 | TC-1433 TC-1433B | 5.6 | 3404-116 |
NOTE: Items without dimensions or prices, please contact the salesperson or request a quotation.
* No tension or compensation stroke for use in synchronous tapping(rigid tapping) cycle.
