Quick Change Tapping Chucks MT Shank
• Tension and compression feature allows taps to follow their own thread lead.
• With extreme light compensation and tension operated by ball cage.
• Made in taiwan
Product Description
หัวจับต๊าป ด้าม MT สำหรับต๊าปคลอเล็ทแบบสวมเร็ว / Quick Change Tapping Chucks MT Shank
• WF-MT LENGTH COMPENSATION TYPE
• Solid Type
• WITH OVERLOAD SAFETY COLLET
Code : MT2-WF12-33

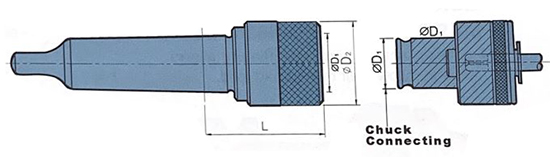

Dimension (mm)
| Order No. | Thread Size | Morse.Taper MT | L | D1 Chuck Connecting øDIA | D2 | Length Compensation | Collets | Weight (kg) | Code No | |
|---|---|---|---|---|---|---|---|---|---|---|
| Compression | Tension | |||||||||
| MT2-WF12 | M2-M14 | MT2 | 47.5 | ø19 | 36 | 7.5 | 7.5 | TC-312 | 0.4 | 3404-123 |
| MT3-WF12 | MT3 | 47.5 | ø19 | 36 | 7.5 | 7.5 | TC-312 | 0.56 | 3404-123A | |
| MT4-WF12 | MT4 | 49 | ø19 | 36 | 7.5 | 7.5 | TC-312 | 0.86 | 3404-123B | |
| MT2-WF20 | M5-M24 | MT2 | 70 | ø31 | 53 | 12.5 | 12.5 | TC-820 | 0.8 | 3404-124 |
| MT3-WF20 | MT3 | 70 | ø31 | 53 | 12.5 | 12.5 | TC-820 | 0.96 | 3404-124A | |
| MT4-WF20 | MT4 | 70 | ø31 | 53 | 12.5 | 12.5 | TC-820 | 1.5 | 3404-124B | |
| MT3-WF33 | M14-M36 | MT3 | 103 | ø48 | 78 | 20 | 15 | TC-1433 | 2.2 | 3404-125 |
| MT4-WF33 | MT4 | 103 | ø48 | 78 | 20 | 15 | TC-1433 | 2.76 | ||
* Tapping Collet Reducer Adapter : TC820 / TC312-AD TC1433 / TC820-AD
| • Tension and compression feature allows taps to follow their own thread lead. |
| • With extreme light compensation and tension operated by ball cage. |
