Sidelock End Mill Holder BT Shank
• BT shank Side Lock Chuck for holding end mills. The holder come completed with screw sets.
• Made in taiwan
Product Description
Side lock End Mill Holder BT-Type
Code : BT-4379
• MAS 403

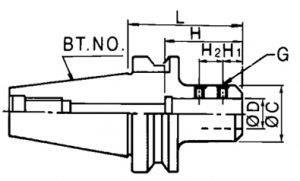

Dimension (mm)
ORDER NO. | SIZE | D | D1 | L | L1 | H1 | H2 | G | WEIGHT (kgs) |
---|---|---|---|---|---|---|---|---|---|
BT-436 | BT30-SLA6-60 | 6 | 25 | 60 | 30 | 12 | 10 | M6X1.0 | 0.7 |
BT-437 | BT30-SLA8-60 | 8 | 28 | 60 | 35 | 14 | 12 | M8X1.25 | 0.7 |
BT-438 | BT30-SLA10-60 | 10 | 35 | 60 | 40 | 15 | 14 | M8X1.25 | 0.7 |
BT-439 | BT30-SLA12-60 | 12 | 42 | 60 | 50 | 20 | 16 | M12X1.5 | 0.8 |
BT-440 | BT30-SLA16-75 | 16 | 48 | 75 | 60 | 20 | 18 | M12X1.5 | 0.9 |
BT-441 | BT30-SLA20-75 | 20 | 52 | 75 | 70 | 23 | 19 | M12X1.5 | 1.2 |
BT-442 | BT40-SLA6-75 | 6 | 25 | 75 | 30 | 12 | 10 | M6X1.0 | 1.2 |
BT-443 | BT40-SLA8-75 | 8 | 28 | 75 | 35 | 14 | 12 | M8X1.25 | 1.3 |
BT-444 | BT40-SLA10-75 | 10 | 35 | 75 | 40 | 15 | 14 | M8X1.25 | 1.4 |
BT-445 | BT40-SLA12-75 | 12 | 42 | 75 | 50 | 20 | 16 | M12X1.5 | 1.5 |
BT-446 | BT40-SLA14-75 | 14 | 44 | 75 | 50 | 20 | 16 | M12X1.5 | 1.5 |
BT-447 | BT40-SLA16-75 | 16 | 48 | 75 | 60 | 20 | 18 | M12X1.5 | 1.6 |
BT-448 | BT40-SLA18-75 | 18 | 50 | 75 | 60 | 20 | 18 | M12X1.5 | 1.6 |
BT-449 | BT40-SLA20-90 | 20 | 52 | 90 | 70 | 23 | 19 | M12X1.5 | 1.9 |
BT-450 | BT40-SLA25-90 | 25 | 62 | 90 | 80 | 24 | 25 | M18X1.5 | 2.2 |
BT-451 | BT40-SLA32-90 | 32 | 63 | 90 | 80 | 24 | 28 | M20X1.5 | 2 |
BT-452 | BT40-SLA40-105 | 40 | 79 | 105 | 80 | 24 | 28 | M20X1.5 | 3.2 |
BT-453 | BT40-SLA42-105 | 42 | 79 | 105 | 80 | 24 | 28 | M20X1.5 | 3.1 |
• BT shank Side Lock Chuck for holding end mills. The holder come completed with screw sets.
