SKD11 Pilot Punches Tip R Type Dia 3-16 mm

Name: SKD11 Pilot Punches Tip R Type Dia 3-16 mm
SKU: PPSA,PPLA,PPXA
Availability: InStock

• Suitable for general metal stamping
• Material: SKD11
• Hardened : HRC60-63
• Order, please specify the model

รหัสสินค้า: PPSA,PPLA,PPXA หมวดหมู่: Pilot Punch

Compare

Pilot Punches,Tip R Type-ไพลอตพั้นซ์ปลายมน

Code : PPSA,PPLA,PPXA

* Shank Dia ลำตัวพั้นซ์ ØD : Dm5
* Material วัสดุ : SKD11
* Hardened ค่าความแข็ง : HRC60-63

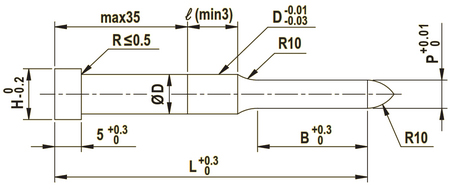

ไพลอตพั้นซ์ปลายมน_dw

Dimensions Unit:mm

Catalog No.		0.01mm.	L							B	H	Y
Model	ØD	P
ค่า B (Short) (Dm5) PPSA (D +0.005 ) 0 A-PPSA	3	1.00~2.99	42	52	62	72				10	5	5
	4	1.00~3.99	42	52	62	72				10	7	5
	5	2.00~4.99	42	52	62	72				10	8	3
	6	2.50~5.99	42	52	62	72				10	9	3
	8	3.00~7.99	42	52	62	72	82	92		15	11	5
	10	3.00~9.99	42	52	62	72	82	92		15	13	5
	13	6.00~12.99	42	52	62	72	82	92	102	15	16	8
	16	10.00~15.99	42	52	62	72	82	92	102	21	19	8
ค่า L (Long) (Dm5) PPLA (D +0.005 ) 0 A-PPLA	3	1.00~2.99	42	52	62	72				15	5	5
	4	1.00~3.99	42	52	62	72				15	7	5
	5	2.00~4.99	42	52	62	72				15	8	3
	6	2.50~5.99	42	52	62	72				15	9	3
	8	3.00~7.99	42	52	62	72	82	92		21	11	5
	10	3.00~9.99	42	52	62	72	82	92		21	13	5
	13	6.00~12.99	42	52	62	72	82	92	102	21	16	8
	16	10.00~15.99	42	52	62	72	82	92	102	27	19	8
ค่า X (Extra long) (Dm5) PPXA (D +0.005 ) 0 A-PPXA	3	1.00~2.99	42	52	62	72				21	5	5
	4	1.00~3.99	42	52	62	72				21	7	5
	5	2.00~4.99	42	52	62	72				27	8	3
	6	2.50~5.99	42	52	62	72				27	9	3
	8	3.00~7.99	42	52	62	72	82	92		32	11	5
	10	3.00~9.99	42	52	62	72	82	92		32	13	5
	13	6.00~12.99	42	52	62	72	82	92	102	32	16	8
	16	10.00~15.99	42	52	62	72	82	92	102	42	19	8
