TAP Chuck Series VTA13 16-Series Capacity M3-M18
• It’s suitable for various taps, so it is much more economic and efficient than other brands of taps chuck.

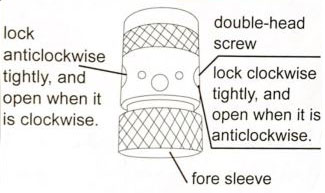

• The design can prevent the taps chuck from loosening after tapping.
• Made in taiwan
Product Description
TAP Chuck Series VTA13,16-Series
Code : VTA-1316
• It’s suitable for various taps, so it is much more economic and efficient than other brands of taps chuck.
• The design can prevent the taps chuck from loosening after tapping.

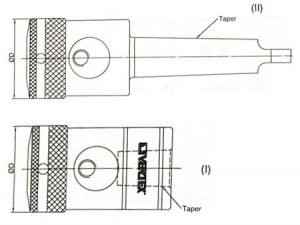

Dimension (mm)
• THE DESIGN CAN PREVENT THE TAPS CHUCK FROM LOOSENING AFTER TAPPING.
• SUIT FOR VARIOUS TAPS. LARGE TAPPING CAPACITY. HIGH POWER TORSONAL.
Order No | Taper | Taping Capacity | D | Weight Kg. | |
---|---|---|---|---|---|
mm | inch | ||||
VTA13-1 | JT6 | M3-M12 | W1/8"-W1/2" | 43 | 0.55 |
VTA13-2 | B16 | M3-M12 | W1/8"-W1/2" | 43 | 0.76 |
VTA13-3 | MT2 | M3-M12 | W1/8"-W1/2" | 47 | 0.76 |
VTA16-2 | B18 | M3-M16 | W1/8"-W5/8" | 54 | 1 |
VTA16-3 | MT2 | M3-M16 | W1/8"-W5/8" | 48.5 | 0.9 |
VTA16-4 | MT3 | M3-M16 | W1/8"-W5/8" | 48.5 | 1.1 |
VTA18-2 | MT2 | M9-M18 | W3/8"-W3/4" | 51 | 0.9224 |
VTA8-3 | MT3 | M9-M18 | W3/8"-W3/4" | 51 | 1.074 |
* Tap design can prevent the taps chuck from loosening after tapping. |
* Suit for various taps, large tapping capacity. High power torsonal. |
* It’s suitable for various taps, so it is much more economic and efficient than other brands of taps chuck. |
* The design can prevent the taps chuck from loosening after tapping. |
