TC1433B Quick Change Tapping Collet JIS System Size M14-36
• สำหรับจับดอกต๊าป JIS
• Made in taiwan
รหัสสินค้า: TC1433B
หมวดหมู่: Tapping Chucks
Product Description
Quick Change Tapping Collet JIS System
• JIS System Size
Code : TC1433B

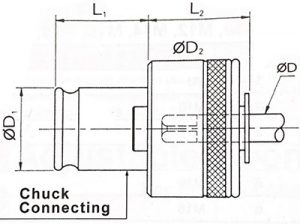

Dimension (mm)
Order No. | Size | Thead | Tap Shank | D1 | L1 | L2 | ØD x □ Same JIS inch or mm |
|
---|---|---|---|---|---|---|---|---|
ØD | □ | |||||||
1433B-01 | TC1433B (#3) | M14/M15 | 10.5 | 8 | SUIT for Dia. 48 | 55.5 | 14 | W9/16",UNC9/16" |
1433B-02 | PT1/4 | 11 | 9 | |||||
1433B-03 | UNC5/8 | 12 | 9 | |||||
1433B-04 | M16 | 12.5 | 10 | |||||
1433B-05 | M17 | 13 | 10 | |||||
1433B-06 | M18 | 14 | 11 | W3/4",UNC3/4",PT3/8",PS3/8",PF3/8" | ||||
1433B-07 | M20 | 15 | 12 | |||||
1433B-08 | M22 | 17 | 13 | W7/8"UNC7/8" | ||||
1433B-09 | PT1/2 | 18 | 14 | |||||
1433B-10 | M24/M25 | 19 | 15 | PF5/8" | ||||
1433B-11 | M26/M27 | 20 | 15 | W1",UNC1" | ||||
1433B-12 | M28 | 21 | 17 | |||||
1433B-13 | UNC1/1/8 | 22 | 17 | |||||
1433B-14 | M30 | 23 | 17 | PT3/",PS3/4",PF3/4" | ||||
1433B-15 | M32 | 24 | 19 | W1-1/4",PF7/8",UNC1-1/4" | ||||
1433B-16 | M33 | 25 | 19 | |||||
1433B-17 | M34/M35 | 26 | 21 | W1-3/8",PT1",PS1",PF1",UNC1-3/8" | ||||
1433B-18 | M36 | 28 | 21 | PS1-1/8",PF1-1/8" |
NOTE: Items without dimensions or prices, please contact the salesperson or request a quotation.
• QUICK CHANGE TAP COLLETS ( WITHOUT OVERLOAD CLUTCH)
