IMCO ดอกเจียรคาร์ไบด์ทรงกรวย รุ่น SM
* สินค้าคุณภาพจาก U.S.A.
* สั่งซื้อ โปรดระบุ รุ่น
Product Description
ดอกเจียรคาร์ไบด์ทรงกรวย Cone-Shape Burs
Code No : IMCO-SM TYPE
Bur Cut Styles
* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.
► Double cut
* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.
► Standard cut
* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
► Aluma Cut
* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.
SM-METRIC

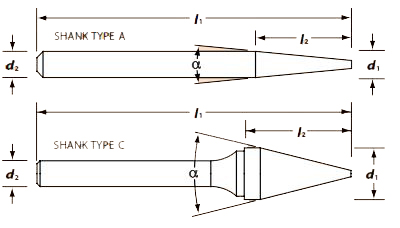

| Standard Cut No. | Double Cut No. | Tools No. | Cutter Dia d1 | Shank Dia d2 | Length of Cut l2 | Overall Length l1 | Incl.Angle |
|---|---|---|---|---|---|---|---|
| 60485 | 60496 | SM-41M | 3 | 3 | 8.7 | 38 | 12º |
| 60486 | 60497 | SM-42M | 3 | 3 | 11 | 38 | 14º |
| 60487 | 60498 | SM-43M | 3 | 3 | 16 | 38 | 7º |
| 60488 | 60499 | SM-53M | 4.7 | 3 | 12.7 | 38 | 16º |
| 60490 | 60501 | SM-1M | 6 | 6 | 12.7 | 50 | 22º |
| 60491 | 60502 | SM-2M | 6 | 6 | 18 | 50 | 14º |
| 60492 | 60503 | SM-3M | 6 | 6 | 25 | 50 | 10º |
| 60489 | 60500 | SM-51M | 6.3 | 3 | 12.7 | 50 | 22º |
| 60493 | 60504 | SM-4M | 9.5 | 3 | 16 | 60 | 28º |
| 60494 | 60505 | SM-5M | 12.7 | 6 | 22 | 66 | 28º |
| 60495 | 60506 | SM-6M | 16 | 6 | 25 | 68 | 31º |
NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา
