IMCO ดอกเจียรคาร์ไบท์ทรงกระบอกปลายมน รุ่น SC

• สินค้าคุณภาพจาก U.S.A.
• สั่งซื้อ โปรดระบุ รุ่น

รหัสสินค้า: IMCO-SC TYPE หมวดหมู่:

imco brand
Compare

Product Description

ดอกเจียรคาร์ไบท์ทรงกระบอกปลายมน Cylindrical Radius End Shape Burs

Code No : IMCO-SC TYPE

Bur Cut Styles

* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.

► Double cut

* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.

► Standard cut

* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.

► Aluma Cut

* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.

SC-METRIC

Standard Cut
No.
Double Cut
No.
Aluma Cut
No.

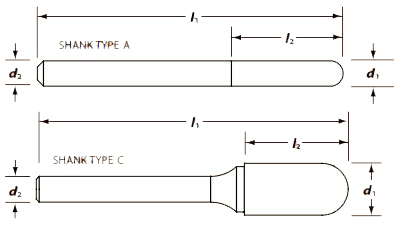

Tools
No.
Cutter Dia
d1
Shank Dia
d2
Length of Cut
l2
Overall Length
l1
6017060192SC-41M2.53638
6017160193SC-42M331138
6018460206SC-42ML2331450
6018860210SC-42ML3331476
6017260194SC-11M361250
6017360195SC-52M4312.738
6017460196SC-53M4.7312.738
6017560197SC-14M4.761650
6017760199SC-1M661650
60215SC-1M661950
6018560207SC-1ML46612.7114
6018960211SC-1ML66612.7163
6017660198SC-51M6.3312.750
6017860200SC-2M862063
601796020160216SC-3M9.561963
6018660208SC-3ML49.5619120
6019060212SC-3ML69.5619171
6018060202SC-4M1162568
601816020360217SC-5M12.762568
6018760209SC-5ML412.7625127
6019160213SC-5ML612.7625177
601826020460218SC-6M1662568
601836020560219SC-7M1962568

NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา

Download PDF

Bur Cut Styles * Select the cut style for the finish you need from the choices below. * Precision flute grinding ensures chatterless operations and a long tool life.
► Double cut * Right- and left-hand flutes combine to produce a chisel-type cutting edge. * You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.
► Standard cut * This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. * Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
► Aluma Cut * Wide flutes make the aluma cut ideal for easy chip clearance. * That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials. * IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.
