ปั้มจ่ายจารบีมีสปริงกดแบบมือโยก CHEN YING,รุ่น CLHP,ถัง 650 cc

• เหมาะสำหรับเครื่องจักรที่ไม่จำเป็นต้องป้อนจาระบีบ่อยๆ
• ขนาดเล็กและติดตั้งง่าย
• มีสปริงแข็งเหมาะสำหรับจารบี NLGI ที่มีระดับ 000 ถึง 2

รหัสสินค้า: CLHP-40 หมวดหมู่: ป้ายกำกับ:
CHEN YING

3,675.00฿

฿
Compare

Product Description

ปั้มจ่ายจารบีมีสปริงกดแบบมือโยก,รุ่น CLHP,ถัง 650 cc

CLHP Type Hard Spring Manual  Lubricator-Grease type,Tank 650 cc

Code : CLHP-40

• CLHP Type Hard Spring Grease Manual Lubricator

Features คุณสมบัติ

* รุ่น CLHA-25 ทำงานร่วมกับหลอดจาระบีแบบใช้แล้วทิ้ง (400 ซีซี) ซึ่งสะดวกกว่าสำหรับการทำความสะอาดและใช้งานง่าย ไม่รวมหลอดจาระบีแบบใช้แล้วทิ้ง
* น้ำมันหล่อลื่นจาระบีชนิดธรรมดาของเฉินหยิงสามารถใช้งานได้อย่างง่ายดายโดยการกดที่จับลงเพื่อป้อนจาระบีซ้ำ
* จาระบีชนิดหล่อลื่นด้วยตนเองมีขนาดเล็กและง่ายต่อการติดตั้ง
* ด้ายหลอดจาระบีมาตรฐานของ CLHA-25 คือ M15 x P2.5 พร้อมฝาปิดถังกระบอก และเกลียว M15 x P2.0 มีให้บริการตามคำขอ
* CLHP-40 และ CLHP-50 มีสปริงแข็งที่เหมาะสำหรับ NLGI ที่มีระดับ 000 ถึง 2
* แนะนำให้ใช้ปืนอัดจารบีสำหรับเติมน้ำมันหล่อลื่นจากช่องเติมน้ำมัน สามารถหลีกเลี่ยงอากาศหรือสิ่งสกปรกที่ตกลงสู่ถัง

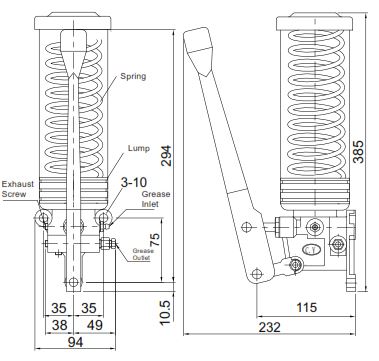

Dimension

Specification รายละเอียด

* Capacity ขนาดกระบอกจุ : 650 cc
* Max Volume ปริมาณสูงสุด : 2 cc / Stroke
* Max Pressure แรงดันสูงสุด : 100 kgf / cm²
* Discharge Bore ท่อ : Ø4 mm or Ø6 mm
* Viscosity ความหนืดของจารบี : Grease NLGI 000-2
* Fixed Hole Distance (mm): 70 mm
* Length : 232 mm
* Width : 94 mm
* Height : 325 mm
* น้ำหนัก Weight: 1.24 กก.

Download PDF

Features คุณสมบัติ

* CLHA-25 type works with disposable grease tube (400 cc) that is more convenient for cleaning and easy operating. The disposable grease tube is not included .
* Chen Ying manual grease type lubricator can easily be operated by pushing the handle down for grease feeding repeatedly.
* Manual grease type lubricator is small and easy for installation.
* The standard grease tube thread of CLHA-25 is M15 x P2.5 with reservoir cover and thread M15 x P2.0 is also availableon request.
* CLHP-40 and CLHP-50 have a hard spring inside that is suitable for NLGI grades 000 to 2.
* Recommend using a grease gun for filling with lubricant from grease inlet. It can avoid air or impurities dropping into the reservoir.
Application of Machines Equipment:
* It is suitable for the machinery that does not need to feed grease frequently
* It is usually installed in presses, woodworking machines, or special purpose machines.
น้ำหนัก 1.35 kg
